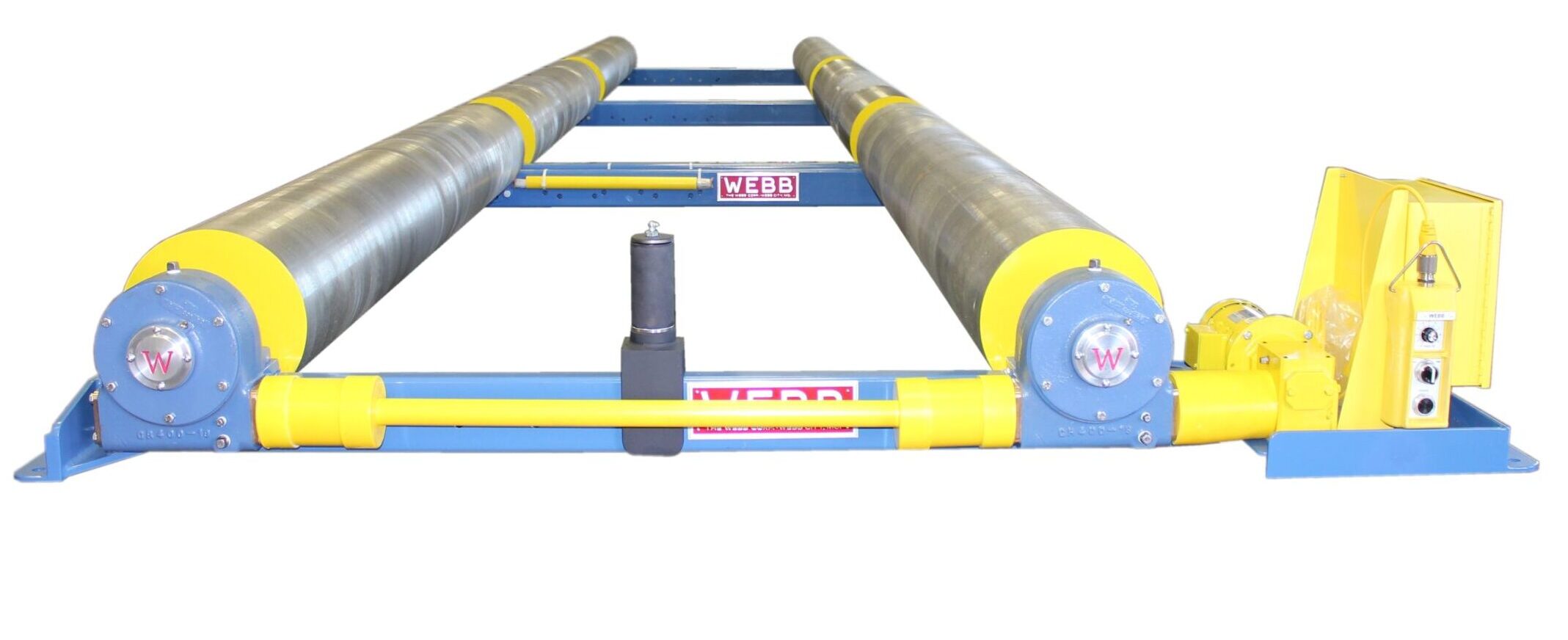

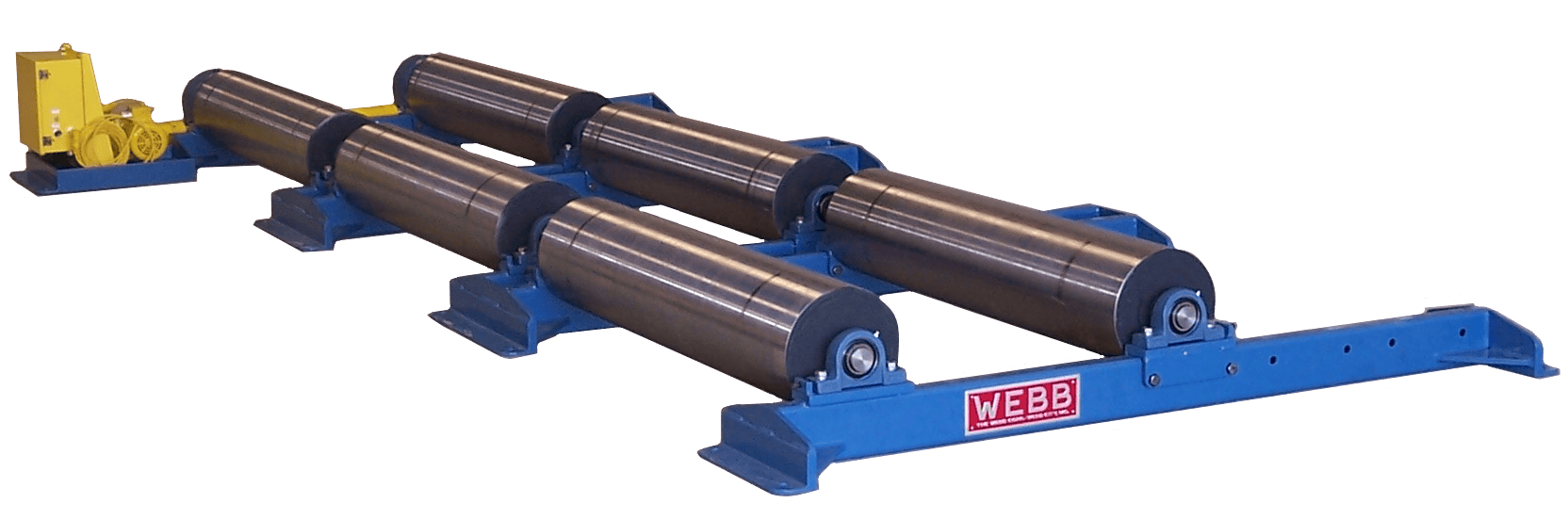

Fit-Up Roll
The WEBB Fit-Up Roll permits easy fit-up of two or more thin walled, large diameter shells that are otherwise difficult to align because of their non-rigidity. Tracking is done directly above one of the two pipe rollers, assuring proper alignment at all points around the circumference as shell is rotated.
- Rapid Fit-Up of Thin Wall Vessels
- Variable Speed Rotation
- Lateral Adjustment
- Easily Adjustable for Various Diameters
- Heavy Fabricated Steel Construction

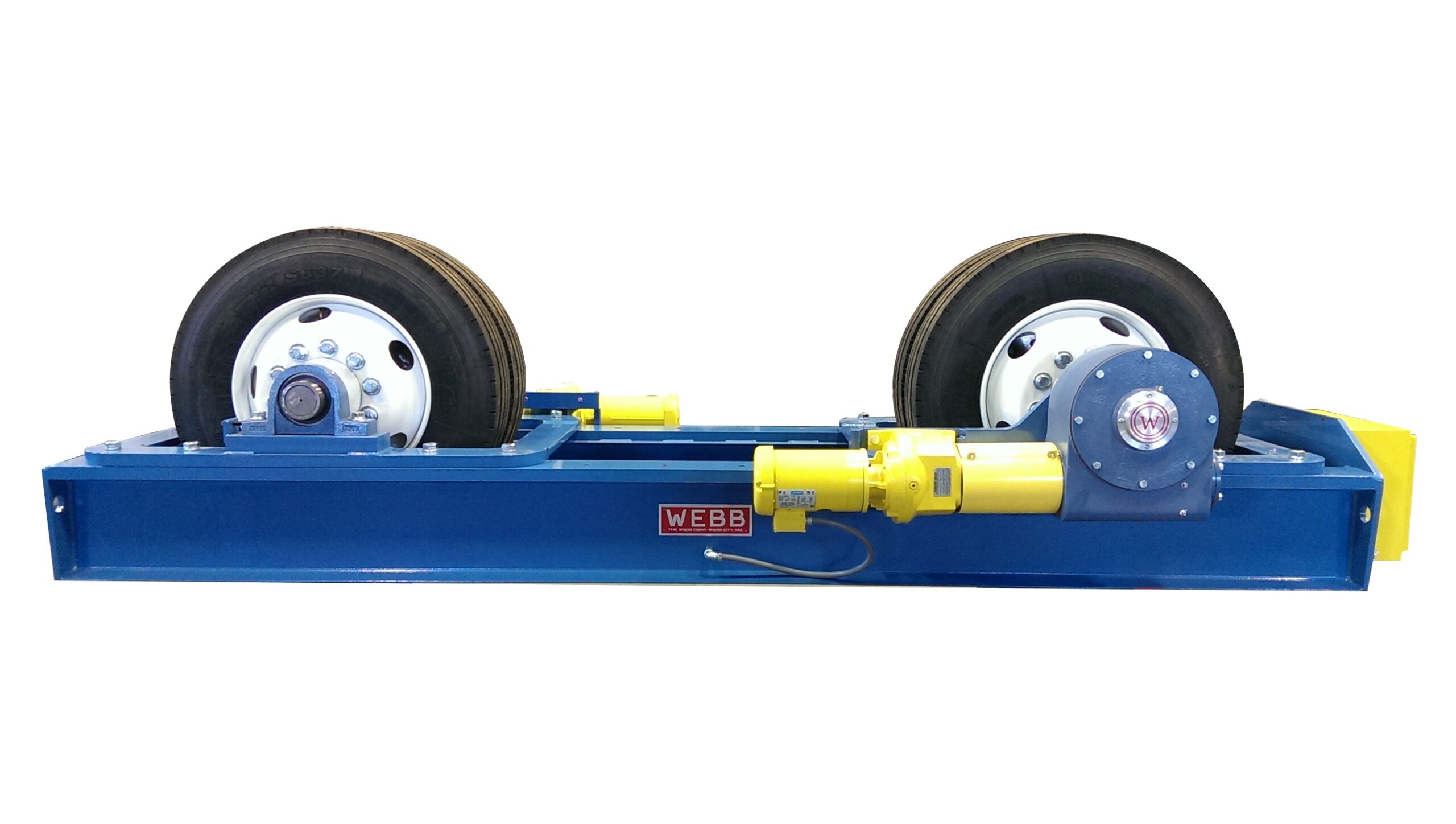

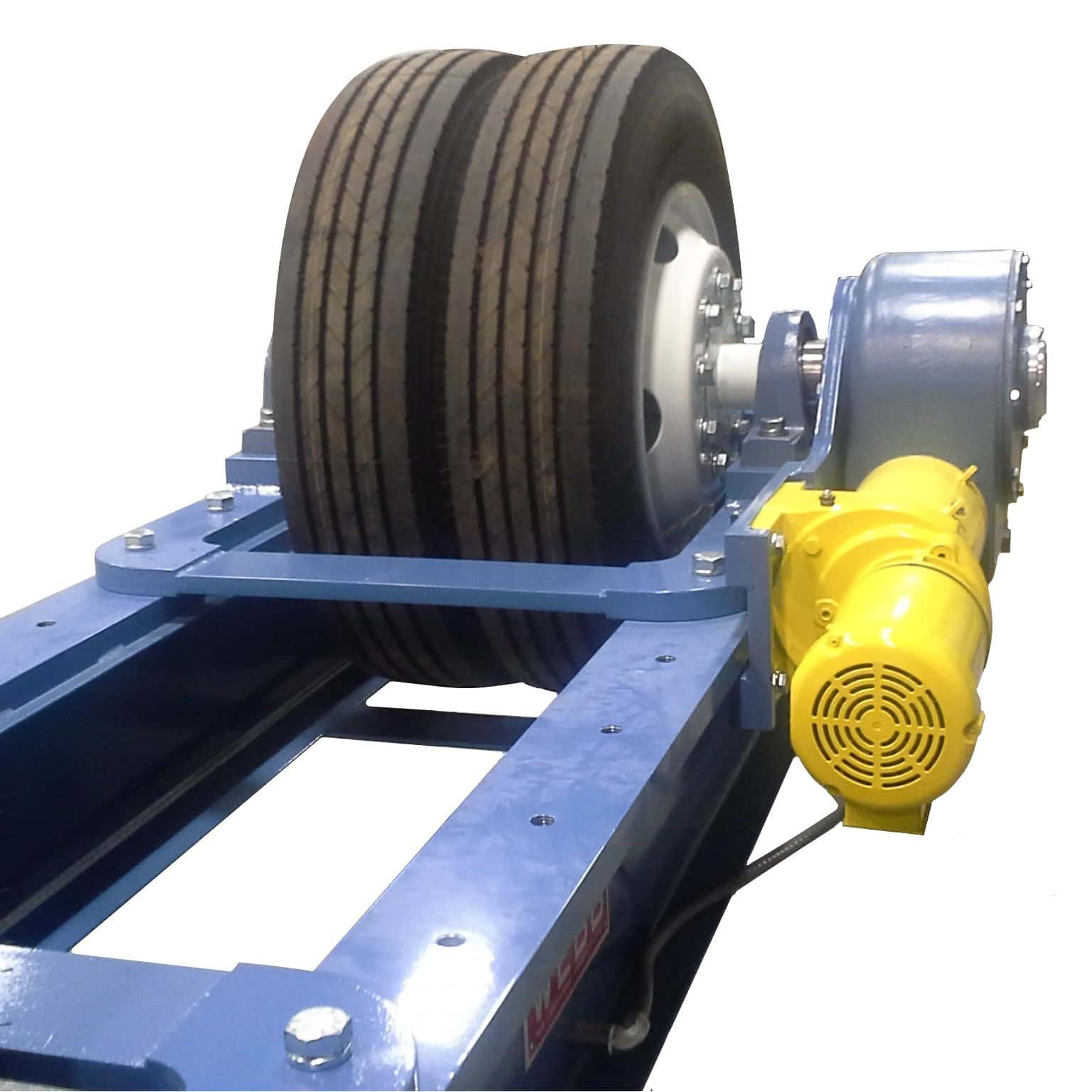

CCT40 Turning Roll
The CCT40 Turning Roll is a constant-center machine designed for heavy-duty industrial use. It features large-diameter semi wheels, enabling operators to effortlessly rotate vessels even when faced with protrusions and obstacles along the circumference. This design in commonly used in the railroad industry when welding the heating coils on tank cars.
- Foam Filled Tires
- Large Diameter Semi Wheels
- 40 Ton Weight Rating
- 150″ Maximum Working Diameter
- 36″ Minimum Working Diameter
- Heavy Fabricated Steel Construction
- Variable Speed Rotation

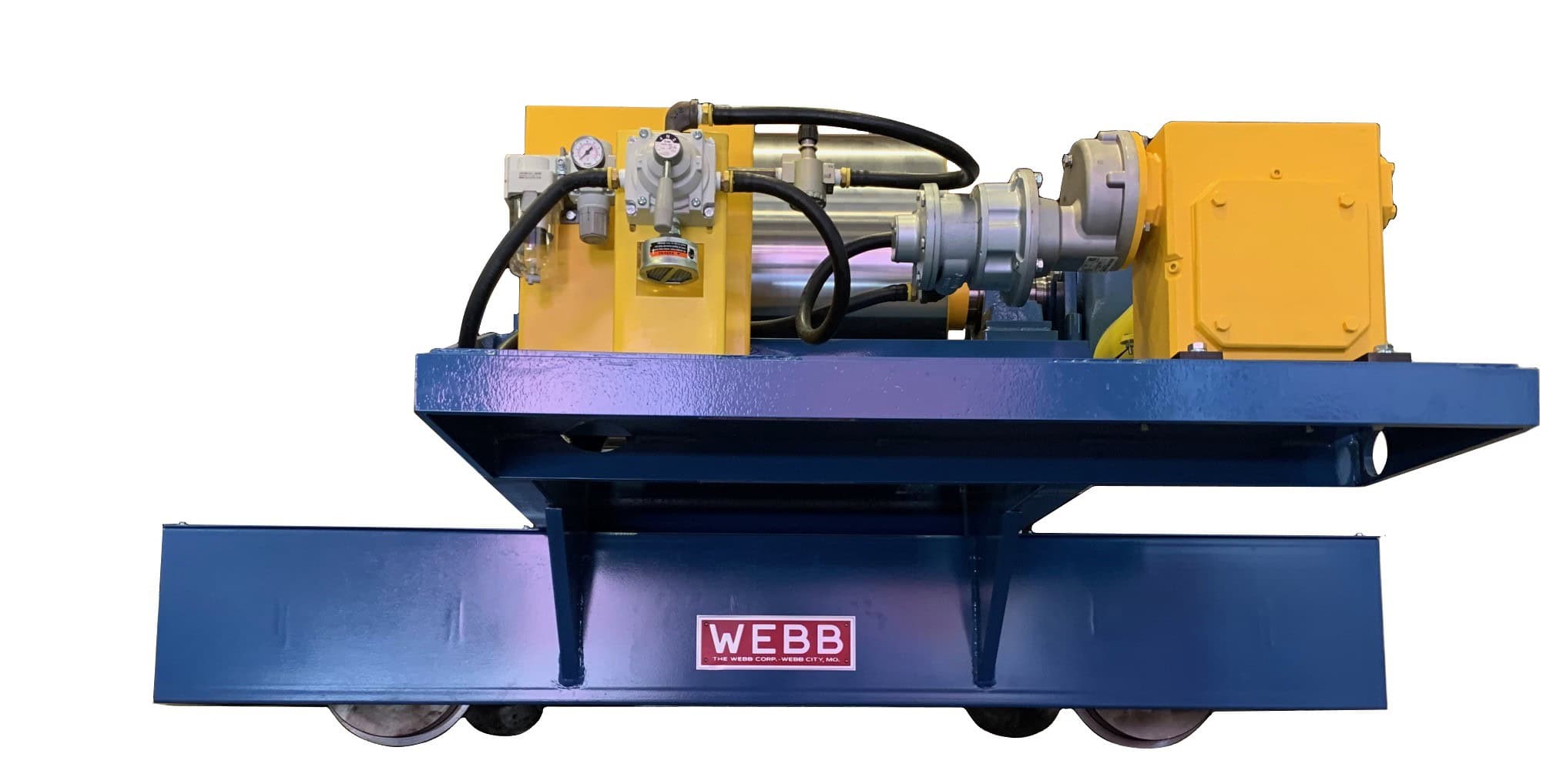

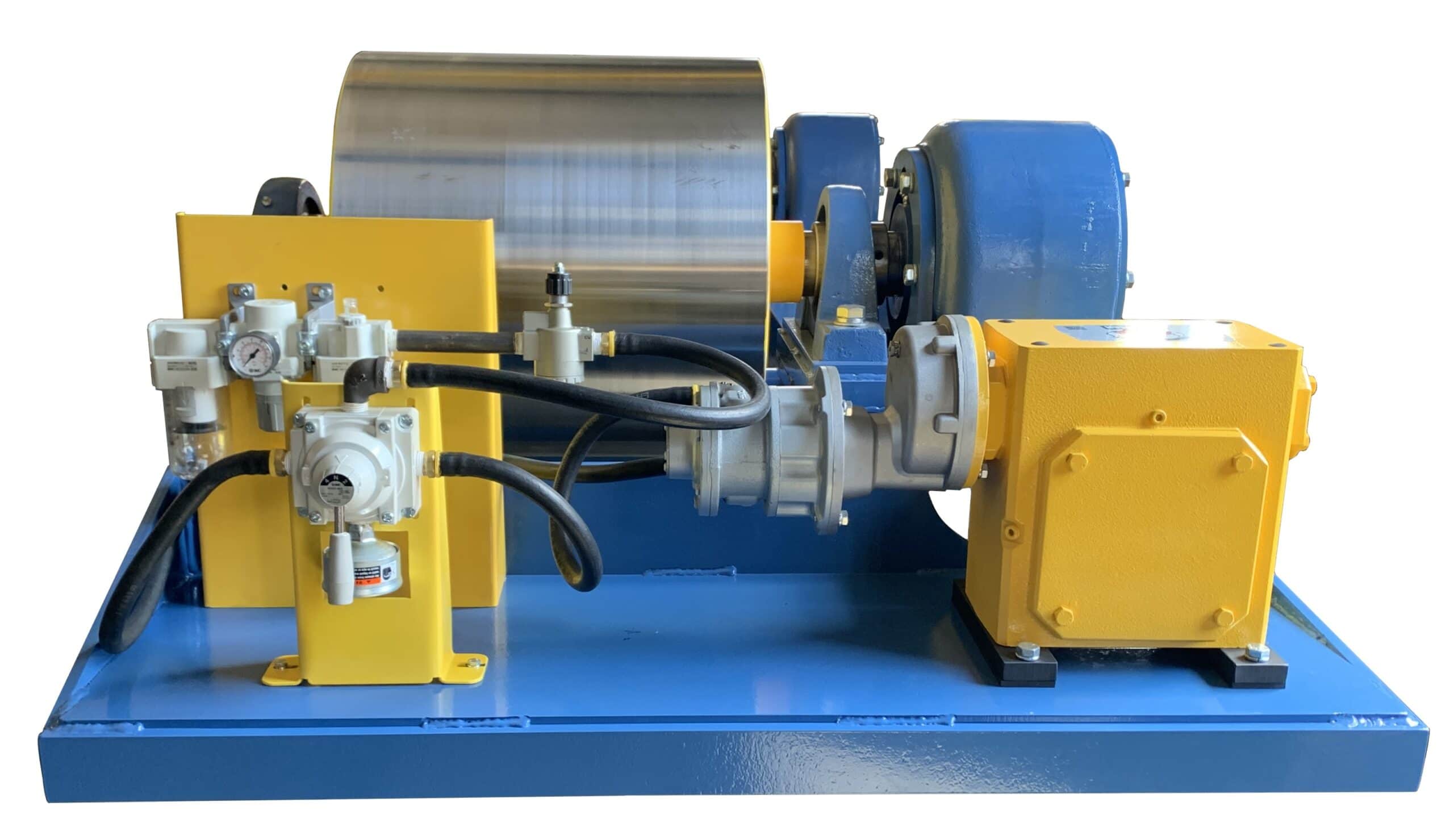

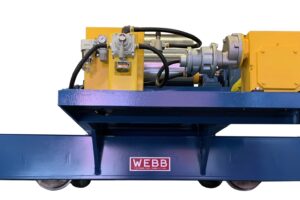

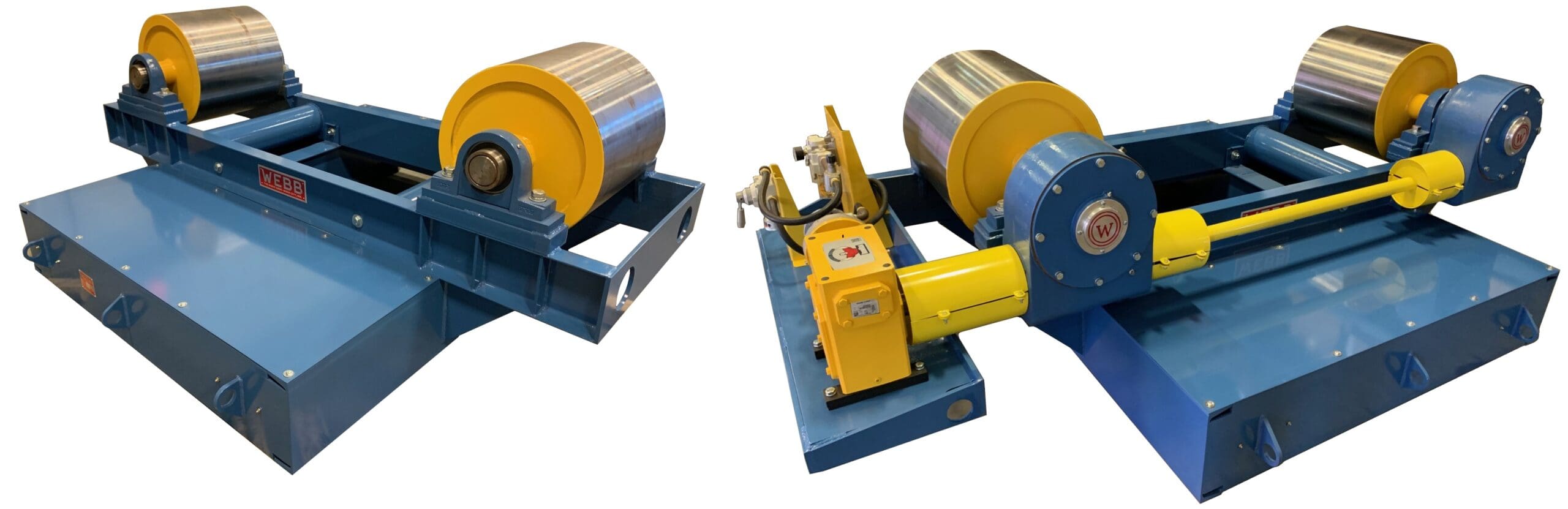

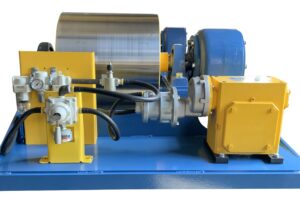

NC 1200 with Travel Cart
- Air-Driven Motor
- Heavy Duty Steel Wheels
- Travel Cart
- Heavy Fabricated Steel Construction
- Variable Speed Rotation
If you are turning tanks or pipes in hazardous environments where the risk of an electric motor generating a spark poses safety concerns, the NC 1200 is the ideal equipment to use. Its pneumatic driven motor operates without the risk of igniting flammable materials, making them ideal for applications in chemical plants, oil refineries, or any area where explosive gases may be present. Similar to all WEBB turning rolls, the NC1200 boast a robust heavy-duty steel construction, engineered to withstand the most demanding task with ease. Its solid steel wheels and robust design ensures durability and stability, making it a reliable choice for even the toughest industrial applications.

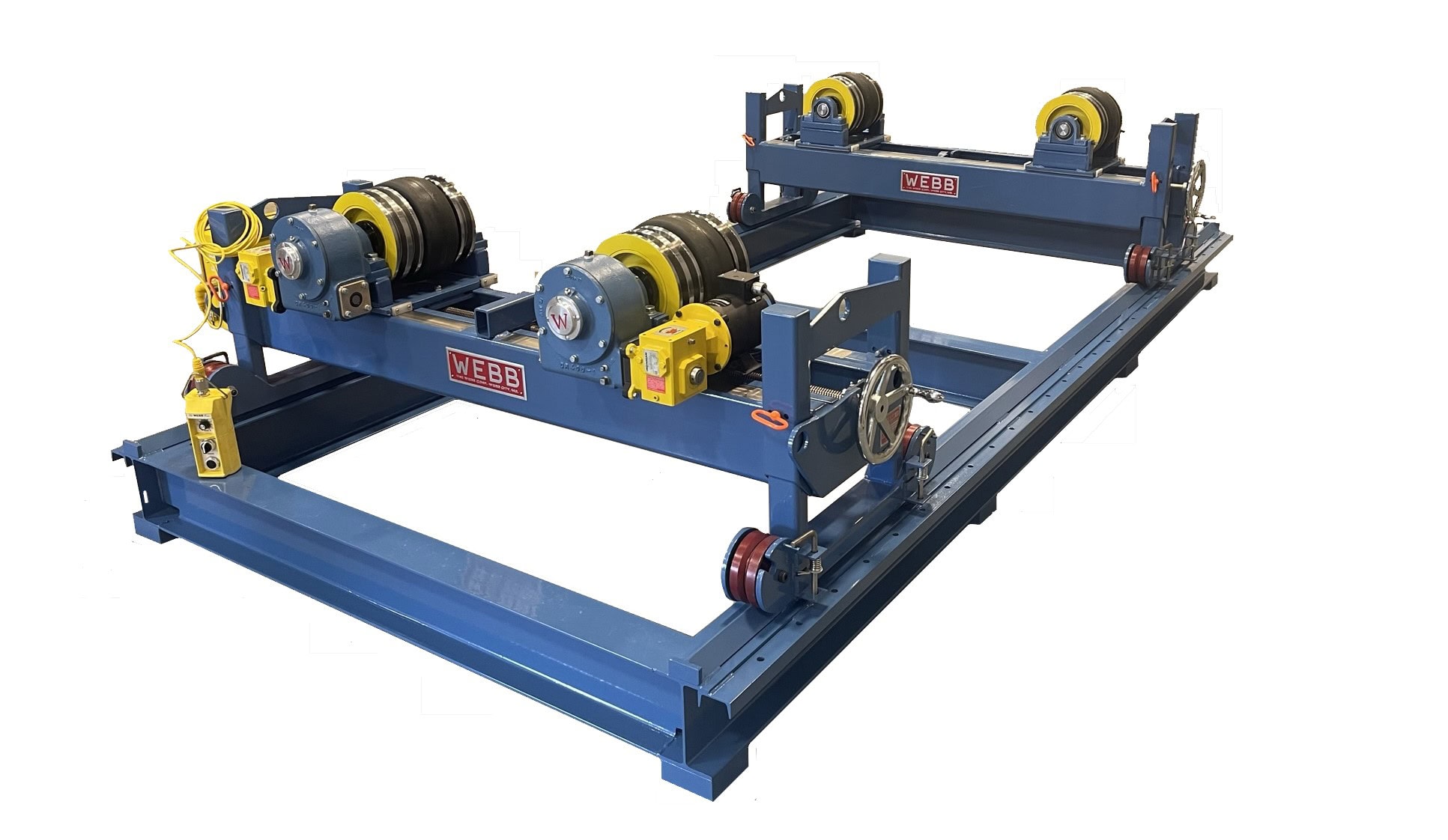

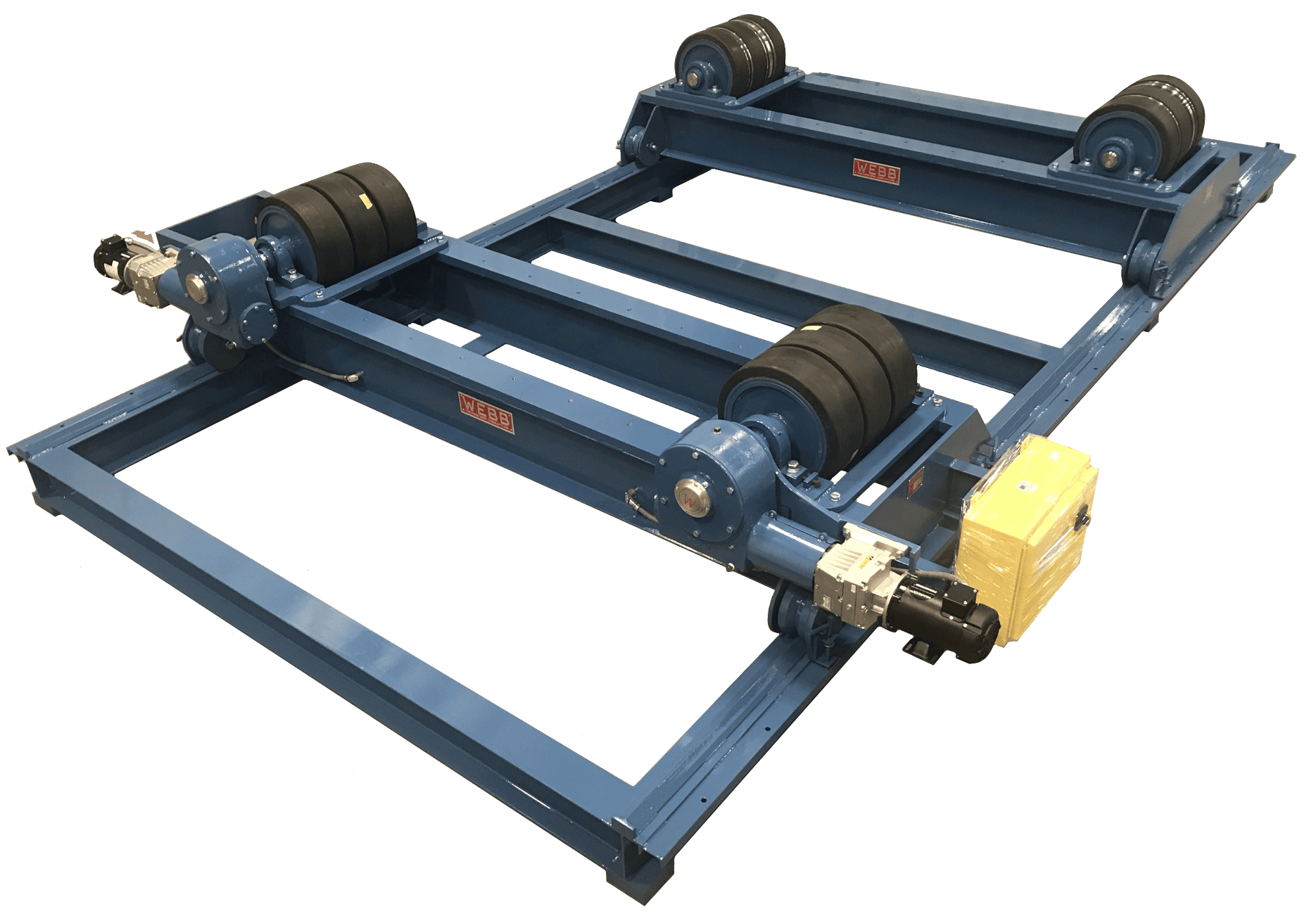

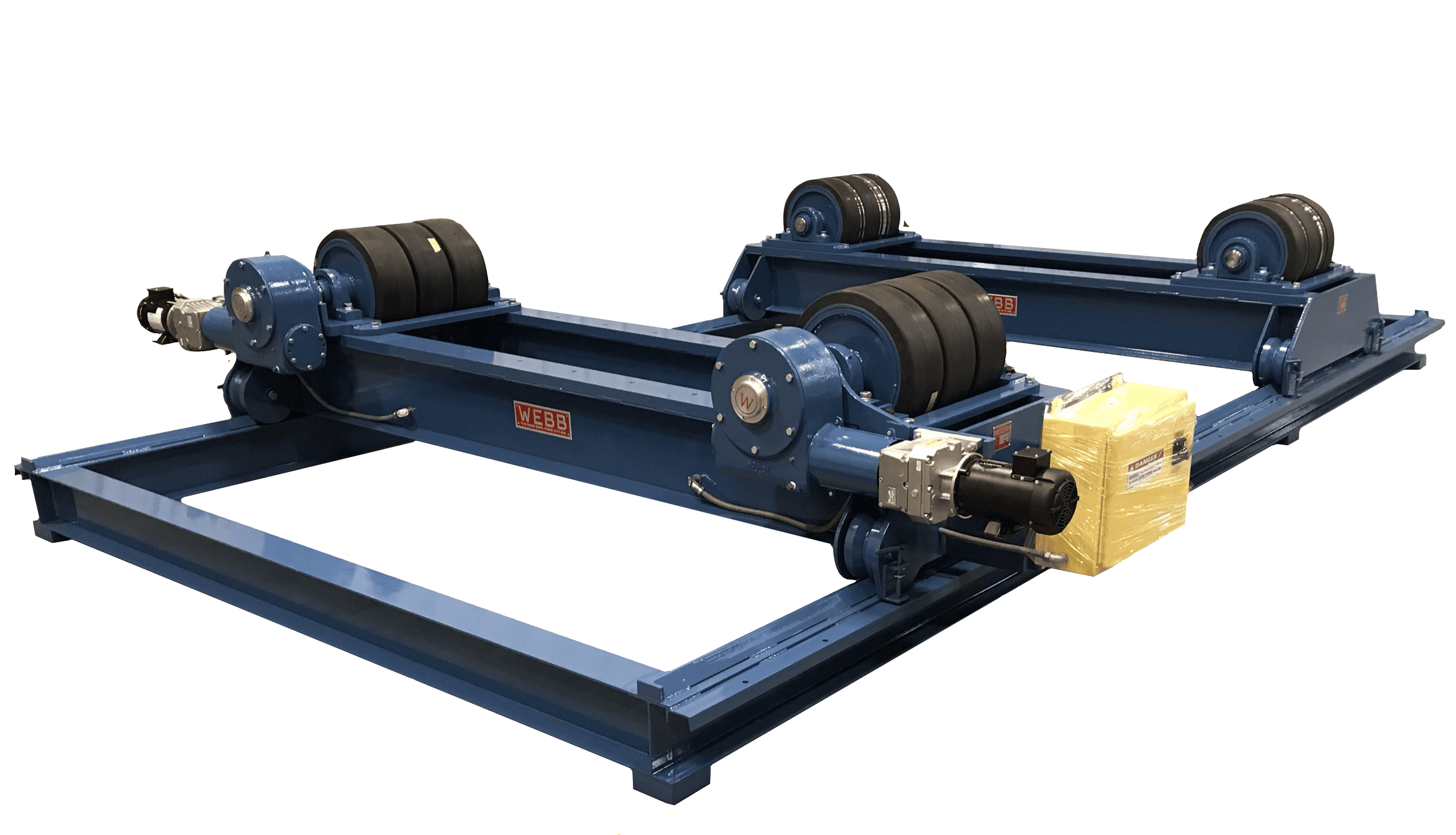

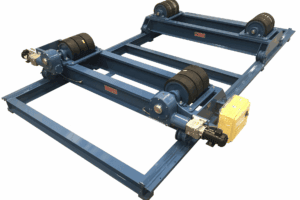

V-Rail Track System
The WEBB Corporation’s V-Rail Track System is designed to meet the needs of welding applications that require precise alignment and quick leveling. It is capable of accommodating uneven floors or terrain. When a set of WEBB turning rolls are used on the V-Rail Track System, operators can easily and safely adjust the position of the turning rolls while maintaining a consistent level alignment. The WEBB Corporation can modify most of our standard turning rolls to be compatible with the V-Rail Track System.
R-500SPL-3
This R-500SPC has all the excellent features of our standard turning rolls, such as strong fabricated construction, fully enclosed worm gear, variable speed drive, and anti-friction bearings. However, this particular unit was specially designed with brass on the wheels for hot work turning. Contact us today to learn how we can tailor a turning roll to your specific needs.

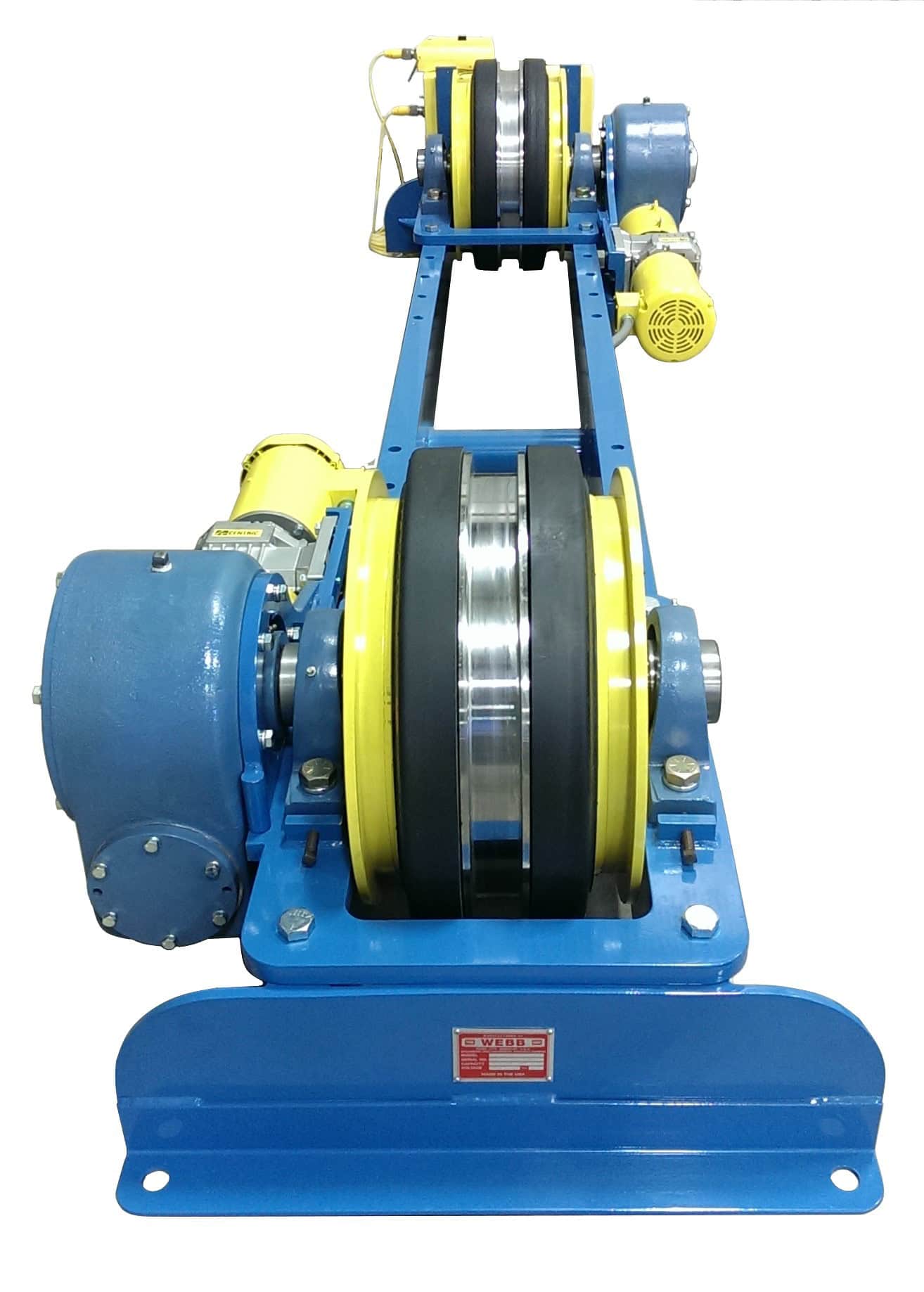

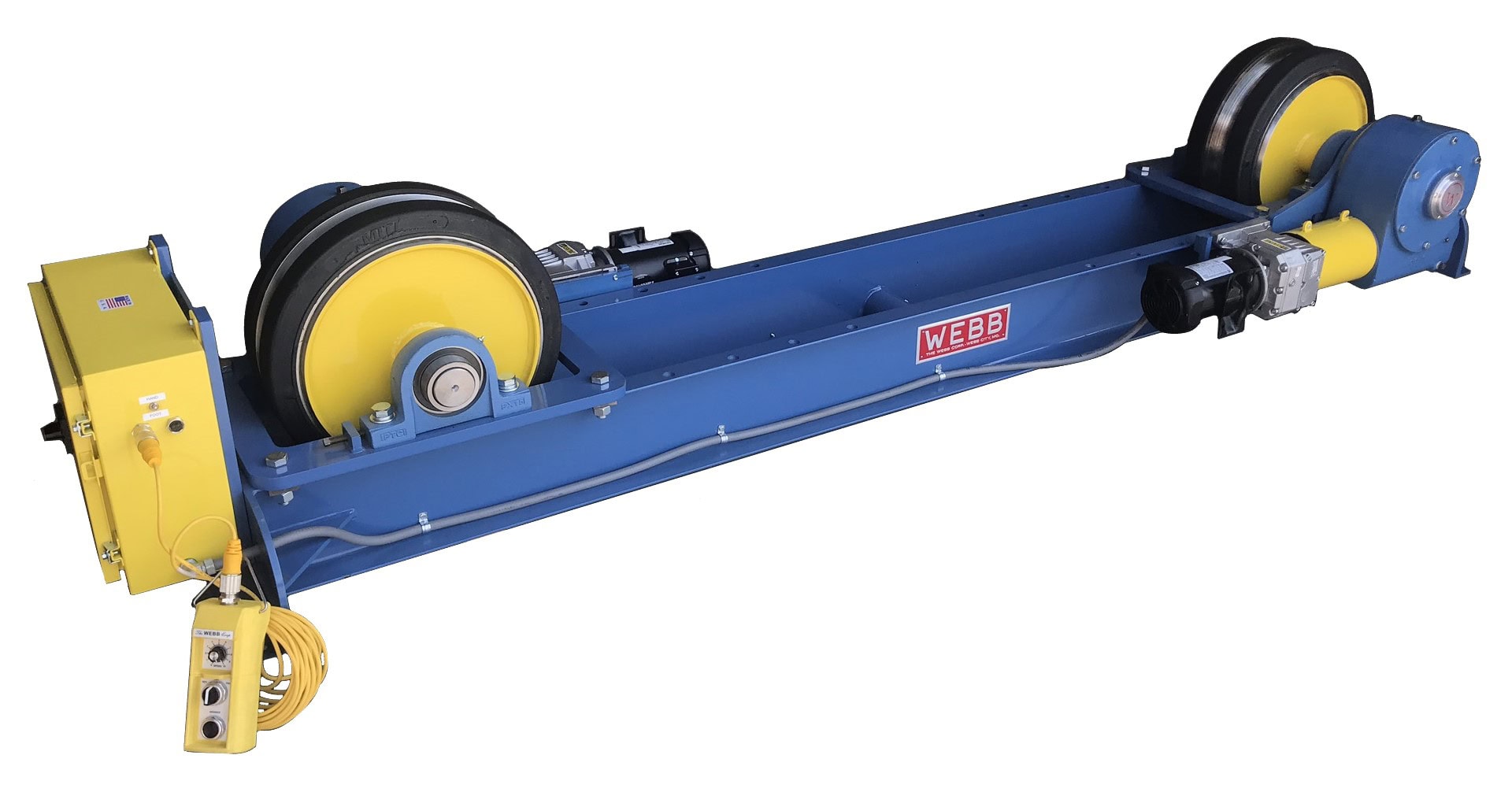

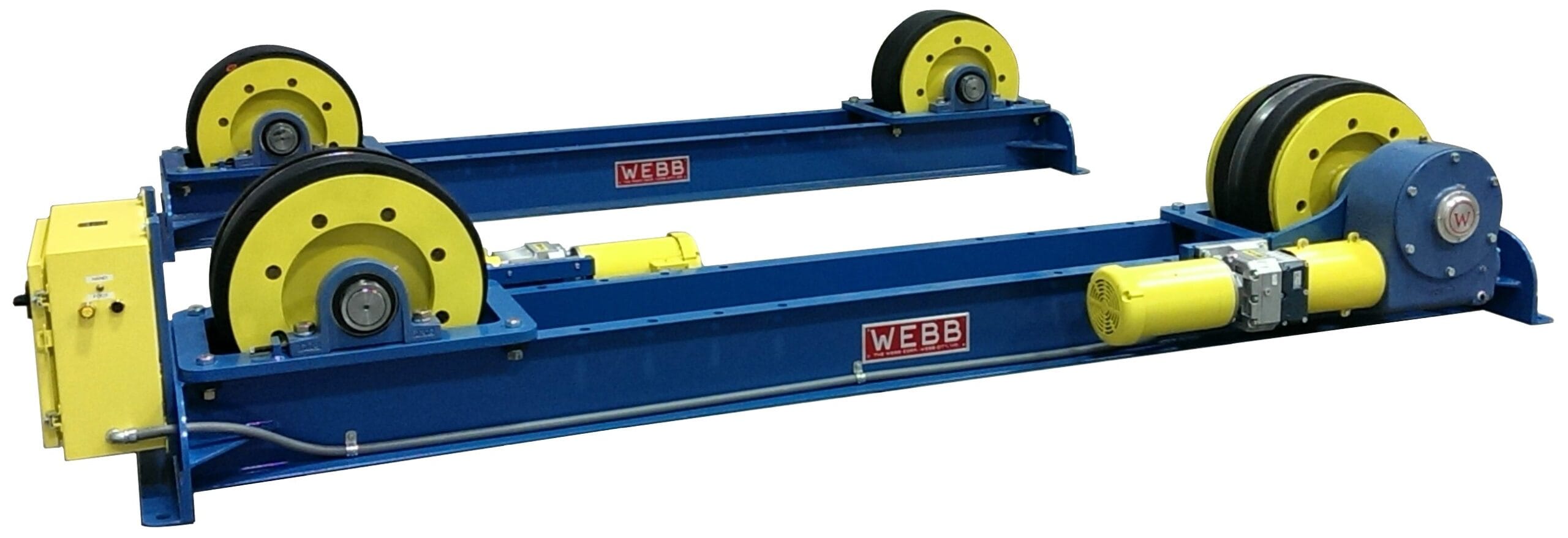

CC-30
(Continue scrolling down to see more of WEBB Corporation’s smaller custom turning rolls.)
CTR-2000
PTR-10
FB-1600
BT4
