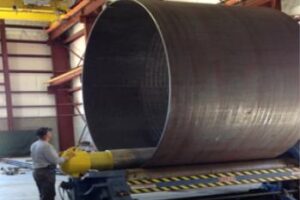

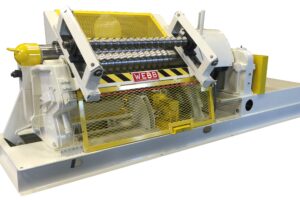

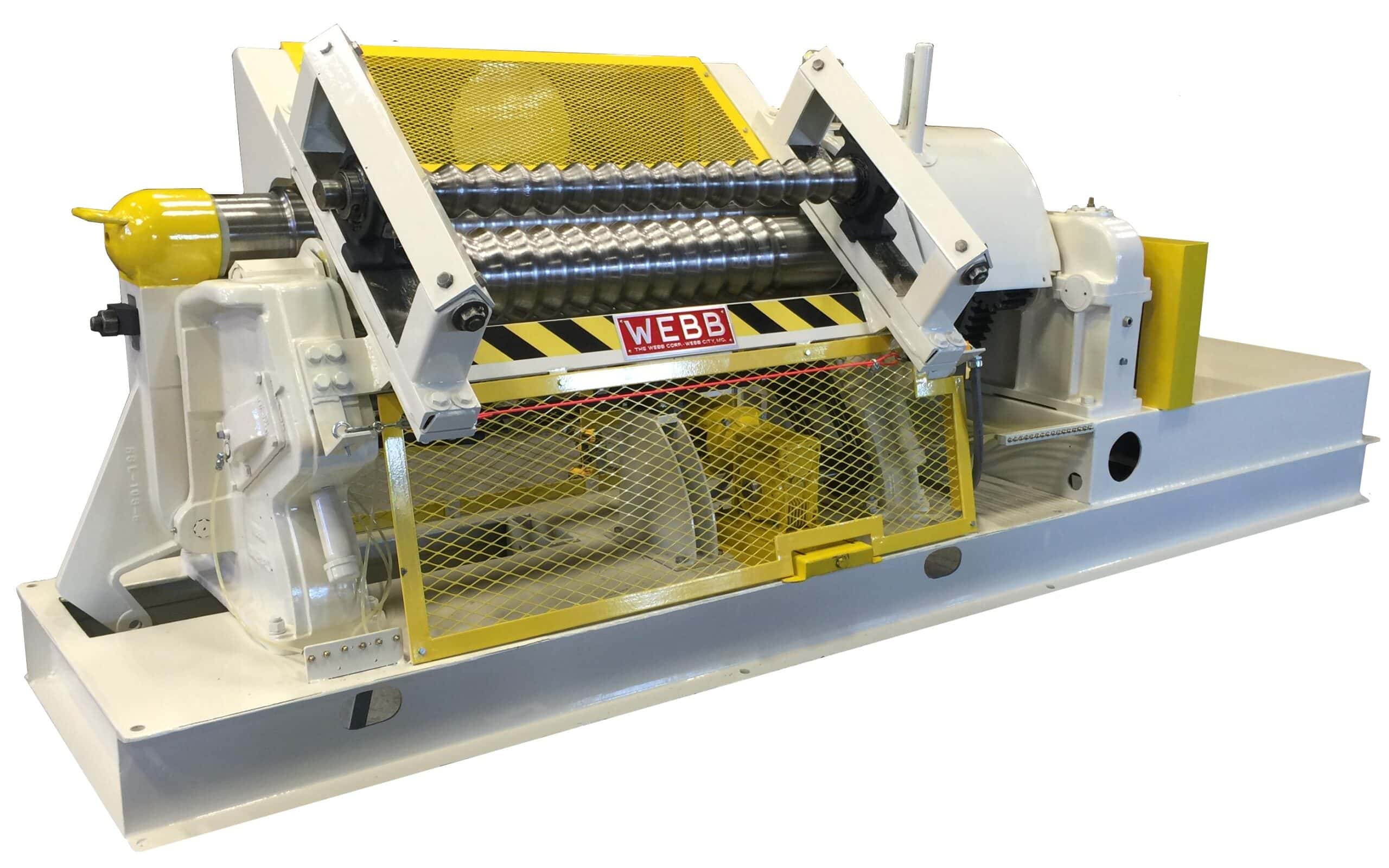

Bending Rolls

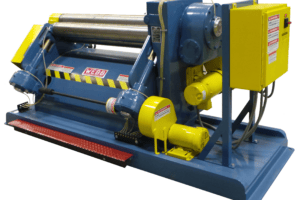

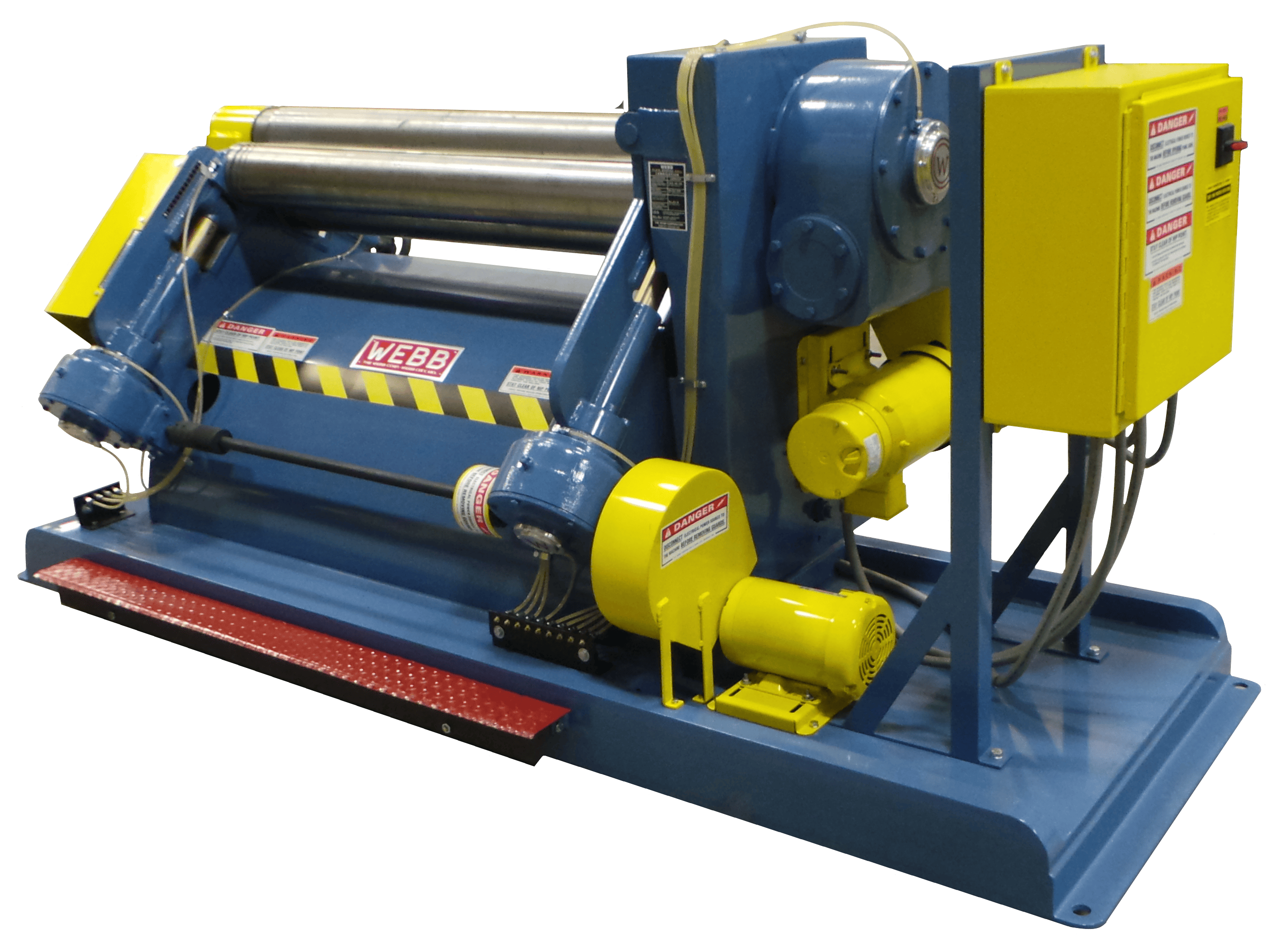

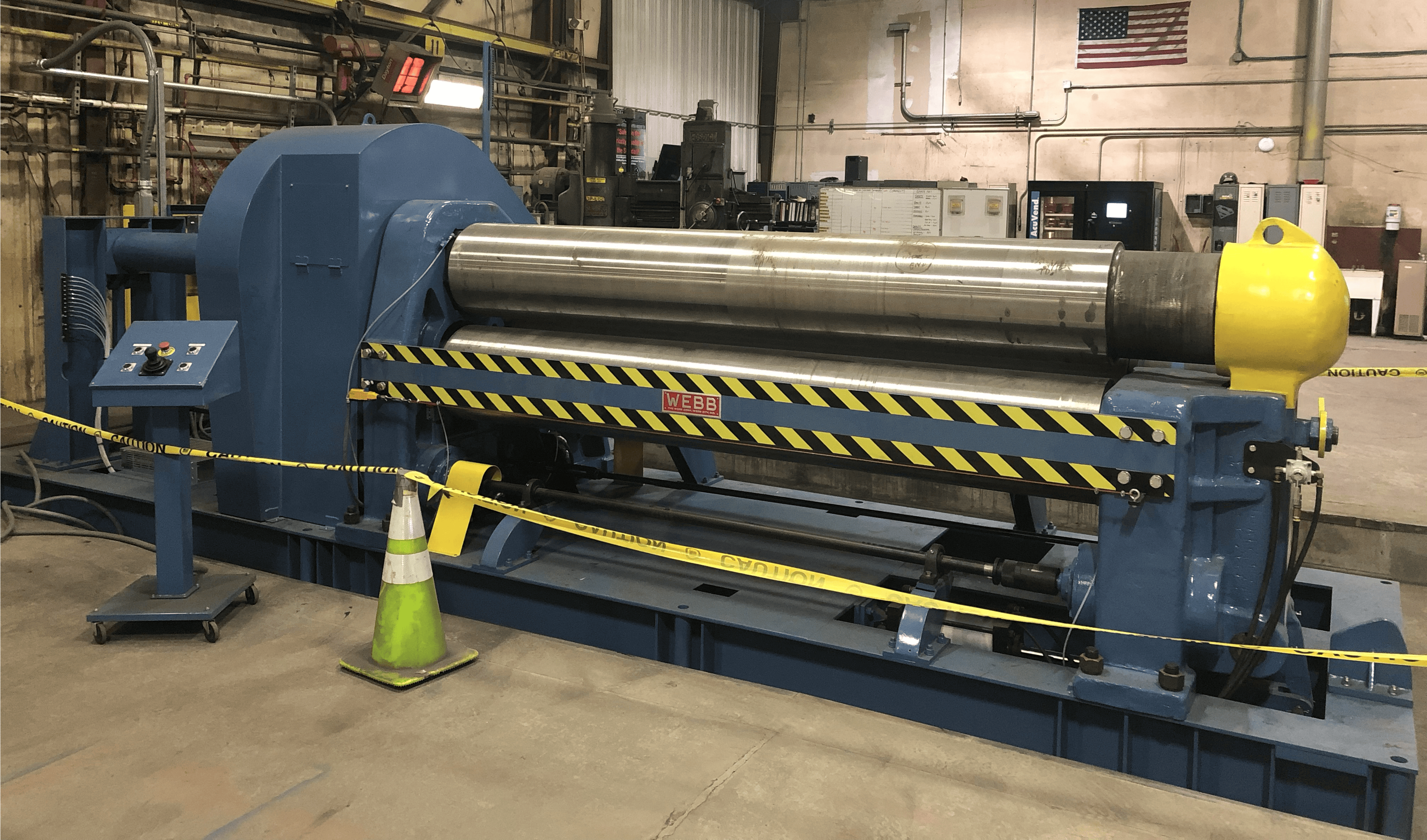

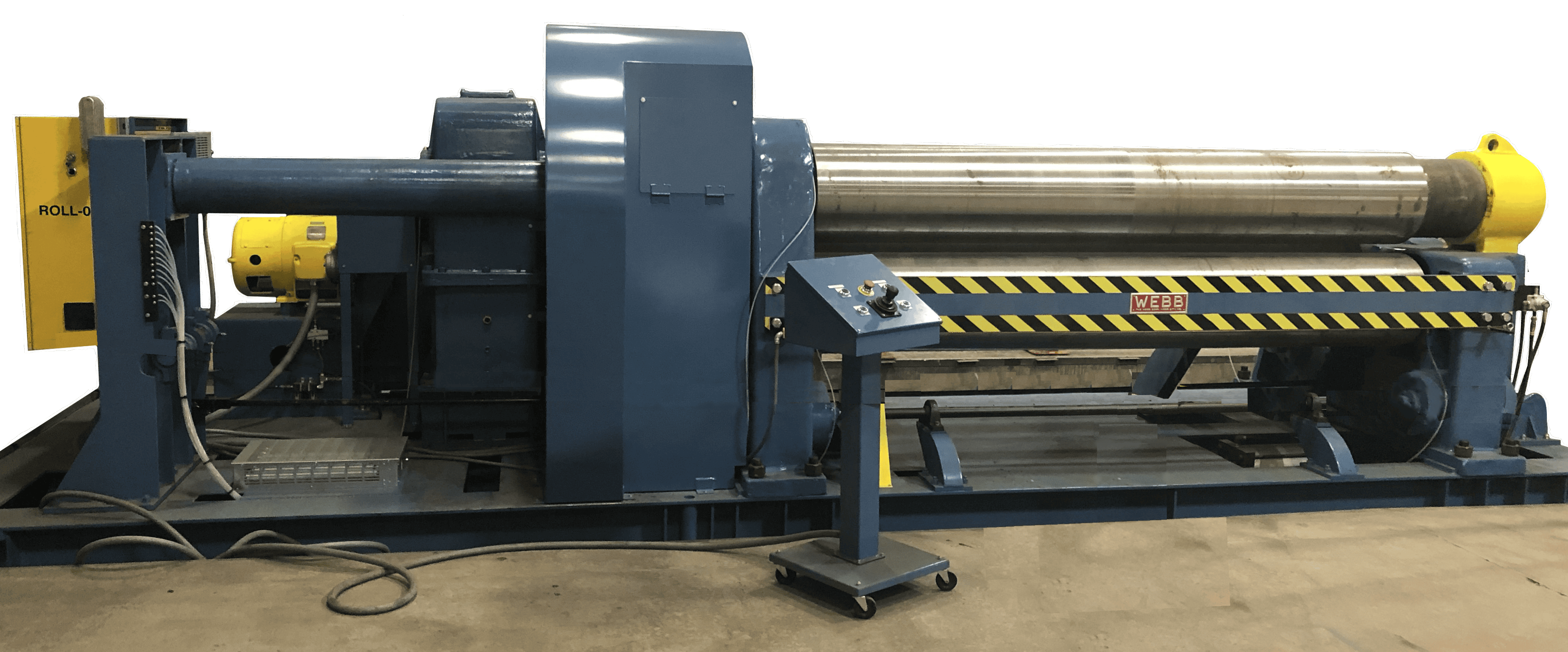

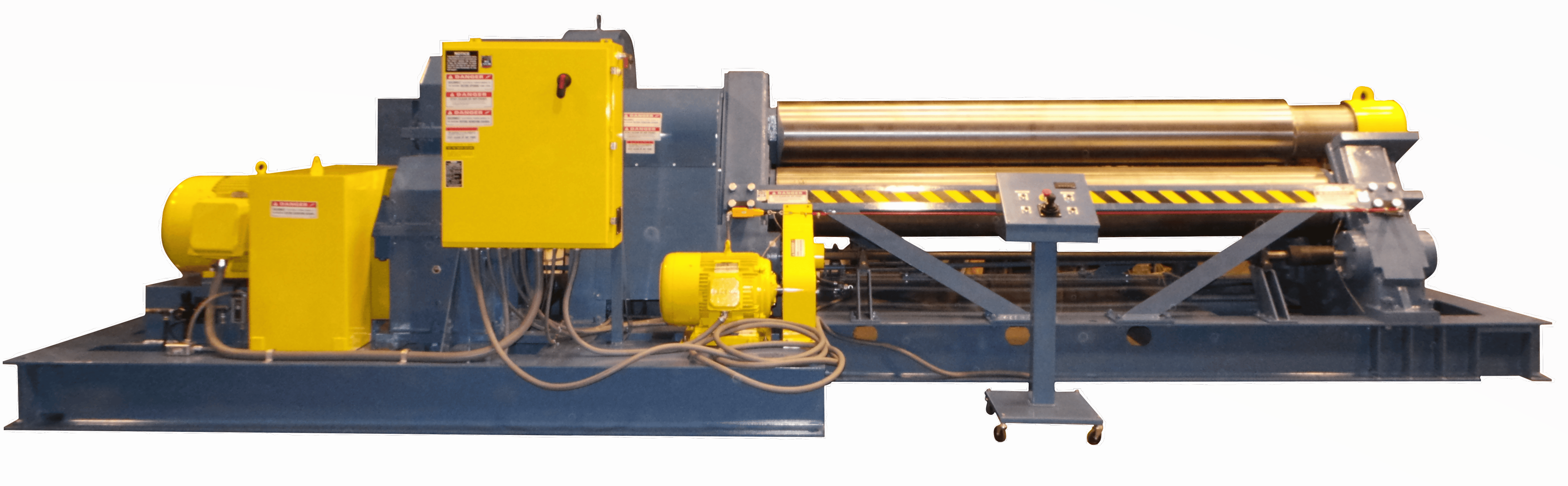

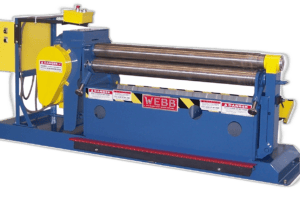

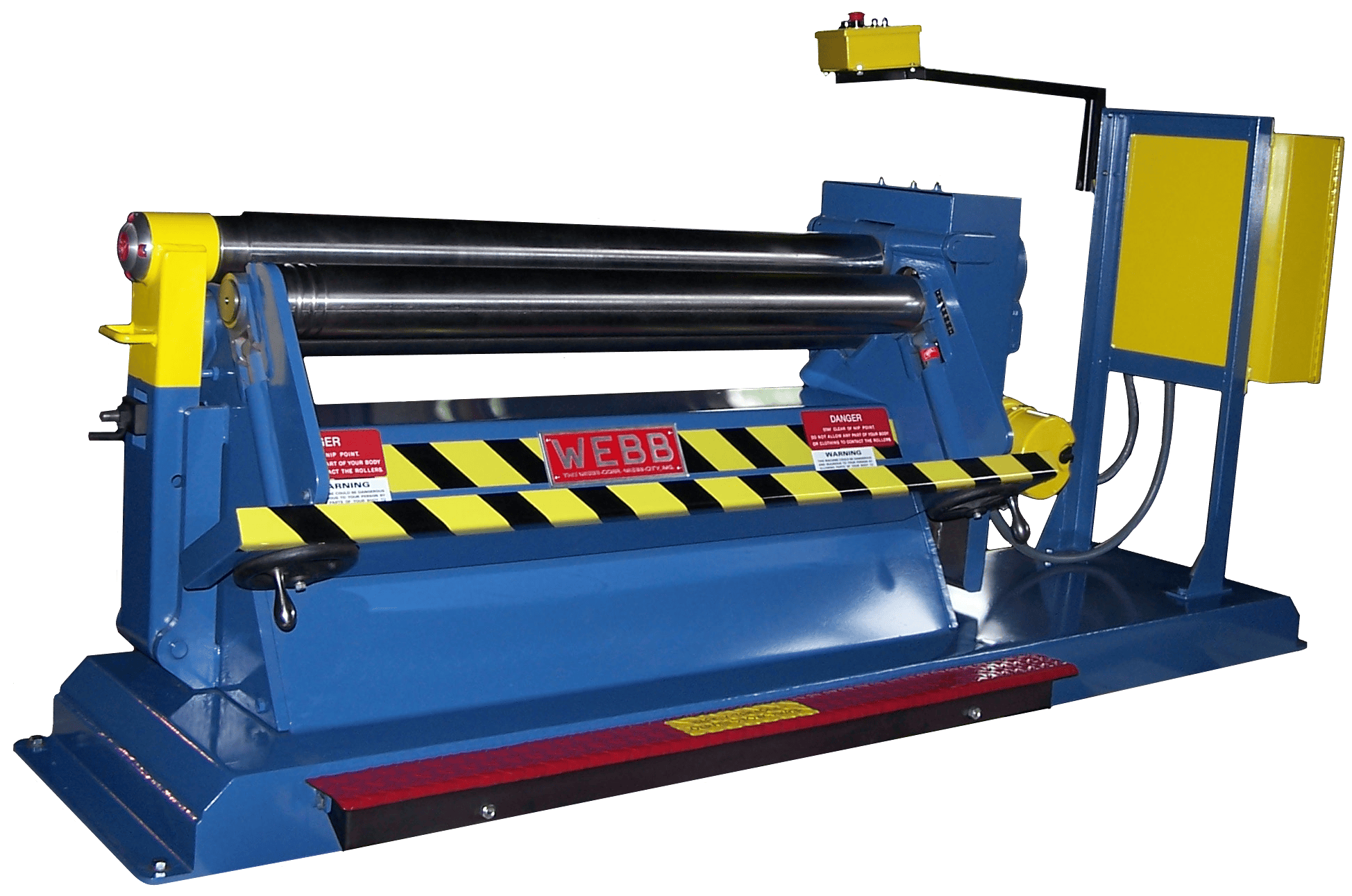

Three-Roll Initial Pinch and Slip Roll
Capacities listed are based on material with 40,000 PSI yield,
60,000 PSI tensile, in small diameter.
| Model Number | Roll Dia. | Catalog # & Capacity | Catalog # & Capacity | Catalog # & Capacity | Catalog # & Capacity | Catalog # & Capacity | Catalog # & Capacity | Catalog # & Capacity | Catalog # & Capacity |
|---|---|---|---|---|---|---|---|---|---|
| 300 | 3" | 3036 36"x14ga | 3042 42"x15ga | 3048 48"x16ga | 3060 60"x20ga | - | - | - | - |
| 300 | 3 1/2" | 3536 36"x10ga | - | - | - | - | - | - | - |
| 400 | 4 1/4" | 438 36" x 10ga | 444 42" x 11ga | 450 48" x 12ga | 462 60" x 14ga | 474 72" x 16ga | - | - | - |
| 500 | 5" | 503 36" x 3/16" | 504 48" x 8ga | 505 60" x 10ga | 506 72" x 12ga | 508 96" x 16ga | - | - | - |
| 600 | 6" | 604 48" x 1/4" | 605 60" x 3/16" | 606 72" x 10ga | 608 96" x 12ga | 610 120" x 14ga | - | - | - |

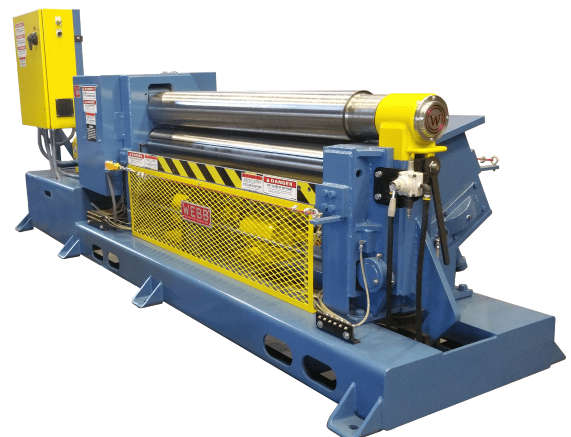

| R3L-R | 6 1/2" | 6504 4'2" x 1/4" | 6505 5'2" x 3/16" | 6506 6'2" x 10ga | 6508 8'2" x 1/8" | 6510 10'2" x 14ga | - | - | - |
| R3L-R | 7" | 7004 4'2" x 5/16" | 7005 5'2" x 1/4" | 7006 6'2"x 5ga | 7008 8'2" x 10ga | 7010 10'2" x 12ga | - | - | - |
| R3L-R | 7 1/2" | 7504 4'2" x 3/8" | 7505 5'2" x 5/16" | 7506 6'2" x 1/4" | 7508 8'2" x 3/16" | 7510 10'2" x 10ga | - | - | - |
| R3L-R | 8" | 8004 4'2" x 7/16" | 8005 5'2" x 3/8" | 8006 6'2" x 5/16" | 8008 8'2"x 1/4" | 8010 10'2" x 3/16" | - | - | - |

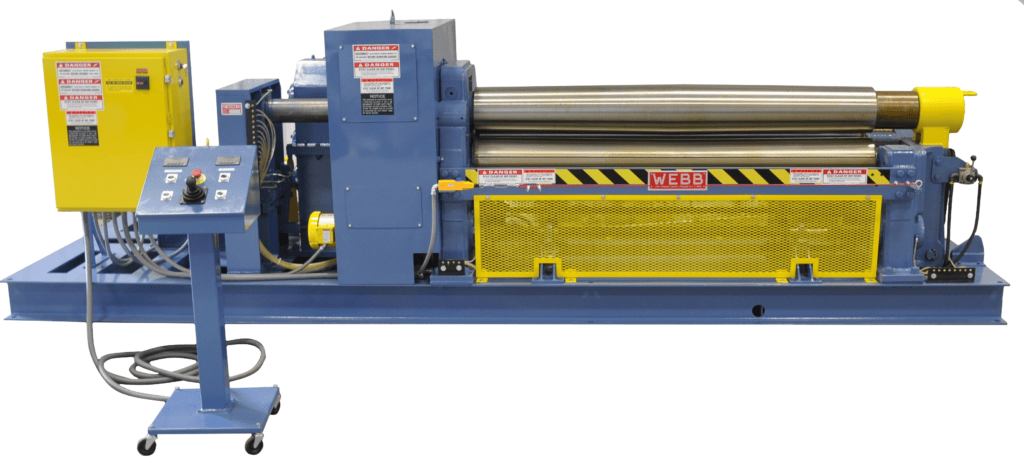

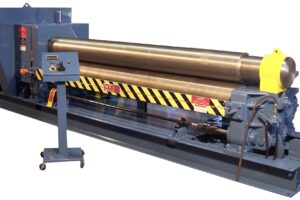

| 7L | 9" | 9004 4'2" x 5/8" | 9006 6'2" x 1/2" | 9008 8'2" x 3/8" | 9010 10'2" x 1/4" | 9012 12'2" x 3/16" | 9014 14'2" x 10ga | - | - |
| 7L | 10" | 1004 4'2" x 3/4" | 1006 6'2" x 9/16" | 1008 8'2" x 7/16" | 1010 10'2" x 3/8" | 1012 12'2" x 1/4" | 1014 14'2" x 3/16" | - | - |
| 7L | 11" | 1106 6'2" x 5/8" | 1108 8'2" x 1/2" | 1110 10'2" x 7/16" | - | - | - | - | - |
| 9L | 12" | 1204 4'2" x 7/8" | 1206 6'2" x 3/4" | 1208 8'2" x 5/8" | 1210 10'2" x 1/2" | 1212 12'2" x 3/8" | 1214 14'2" x 5/16" | 1216 16'2" x 3/16" | - |
| 9L | 13" | 1304 4'2" x 1" | 1306 6'2" x 7/8" | 1308 8'2" x 3/4" | 1310 10'2" x 1/2" | 1312 12'2" x 1/2" | 1314 14'2" x 3/8" | 1316 16'2" x 1/4" | - |
| 15L | 15" | 1506 6'2" x 1 1/8" | 1508 8'2" x 7/8" | 1510 10'2" x 3/4" | 1512 12'2" x 5/8" | 1514 14'2" x 1/2" | 1516 16'2" x 3/8" | - | - |
| 15L | 16" | 1606 6'2" x 1 1/8" | 1608 8'2" x 1" | 1610 10'2" x 7/8" | 1612 12'2" x 3/4" | 1614 14'2'" x 5/8" | 1616 16'2" x 1/2" | - | - |

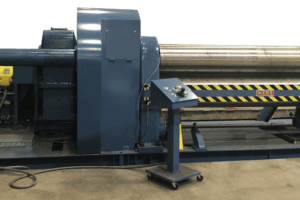

| 18L | 17" | 1706 6'2" x 1 1/4" | 1708 8'2" x 1 1/8" | 1710 10'2" x 1" | 1712 12'2" x 7/8" | 1714 14'2" x 3/4" | 1716 16'2" x 5/8" | 1718 18'2" x 3/8" | 1720 20'2" x 1/4" |
| 18L | 18" | 1806 6'2" x 1 3/8" | 1808 8'2" x 1 1/4" | 1810 10'2" x 1" | 1812 12'2" x 1" | 1814 14'2" x 13/16" | 1816 16'2" x 3/4" | 1818 18'2" x 5/8" | 1820 20'2" x 3/8" |
| 18L | 19" | 1906 6'2" x 1 1/2" | 1908 8'2" x 1 3/8" | 1910 10'2" x 1-3/16" | 1912 12'2" x 1-1/16" | 1914 14'2" x 7/8" | 1916 16'2" x 13/16" | 1918 18'2" x 5/8" | 1920 20'2" x 1/2" |
| 20L | 20" | 2006 6'2" x 1-3/4" | 2008 8'2" x 1-1/2" | 2010 10'2" x 1-1/4" | 2012 12'2" x 1-1/8" | 2014 14'2" x 15/16" | 2016 16'2" x 13/16" | 2018 18'2" x 3/4" | 2020 20'2" x 5/8" |
| 20L | 21" | 2106 6'2" x 1-7/8" | 2108 8'2" x 1-1/2" | 2110 10'2" x 1-3/8" | 2112 12'2" x 1-1/8" | 2114 14'2" x 1" | 2116 16'2" x 7/8" | 2118 18'2" x 13/16" | 2120 20'2" x 11/16" |
| 20L | 22" | 2206 6'2" x 2" | 2208 8'2" x 1-5/8" | 2210 10'2" x 1-1/2" | 2212 12'2" x 1-1/4" | 2214 14'2" x 1-1/16" | 2216 16'2" x15/16" | 2218 18'2" x 7/8" | 2220 20'2" x 3/4" |
| 20L | 23" | 2306 6'2" x 2-1/8" | 2308 8'2" x 1-7/8" | 2310 10'2" x 1-5/8" | 2312 12'2" x 1-3/8" | 2314 14'2" x 1-1/8" | 2316 16'2" x 1" | 2318 18'2" x 15/16" | 2320 20'2" x 13/16" |
| 24L | 24" | 2406 6'2" x 2-1/4" | 2408 8'2" x 2" | 2410 10'2" x 1-3/4" | 2412 12'2" x 1-1/2" | 2414 14'2" x 1-1/4" | 2416 16'2" x 1-1/8" | 2418 18'2" x 1" | 2420 20'2" x 7/8" |

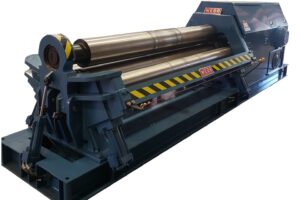

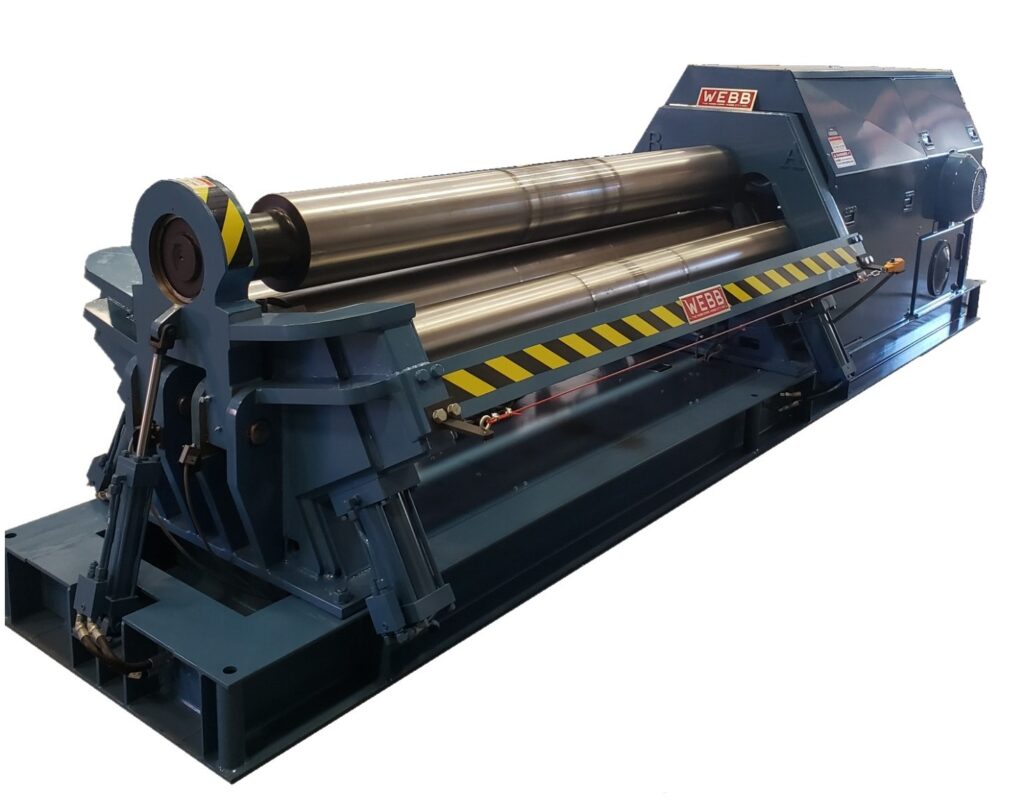

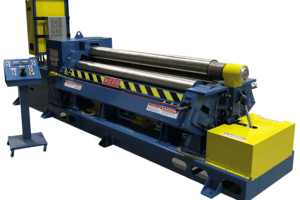

Four-Roll Hydraulic Bender
Capacities listed are based on material with 40,000 PSI yield,
60,000 PSI tensile, in small diameter.
Optional Features
- Hardened Ground Rolls
- Air or Hydraulic Drop Hinge
- Cone Rolling Attachment
- Digital Indicators for Easy, Repeatable Accuracy
- Automatic Handling Equipment

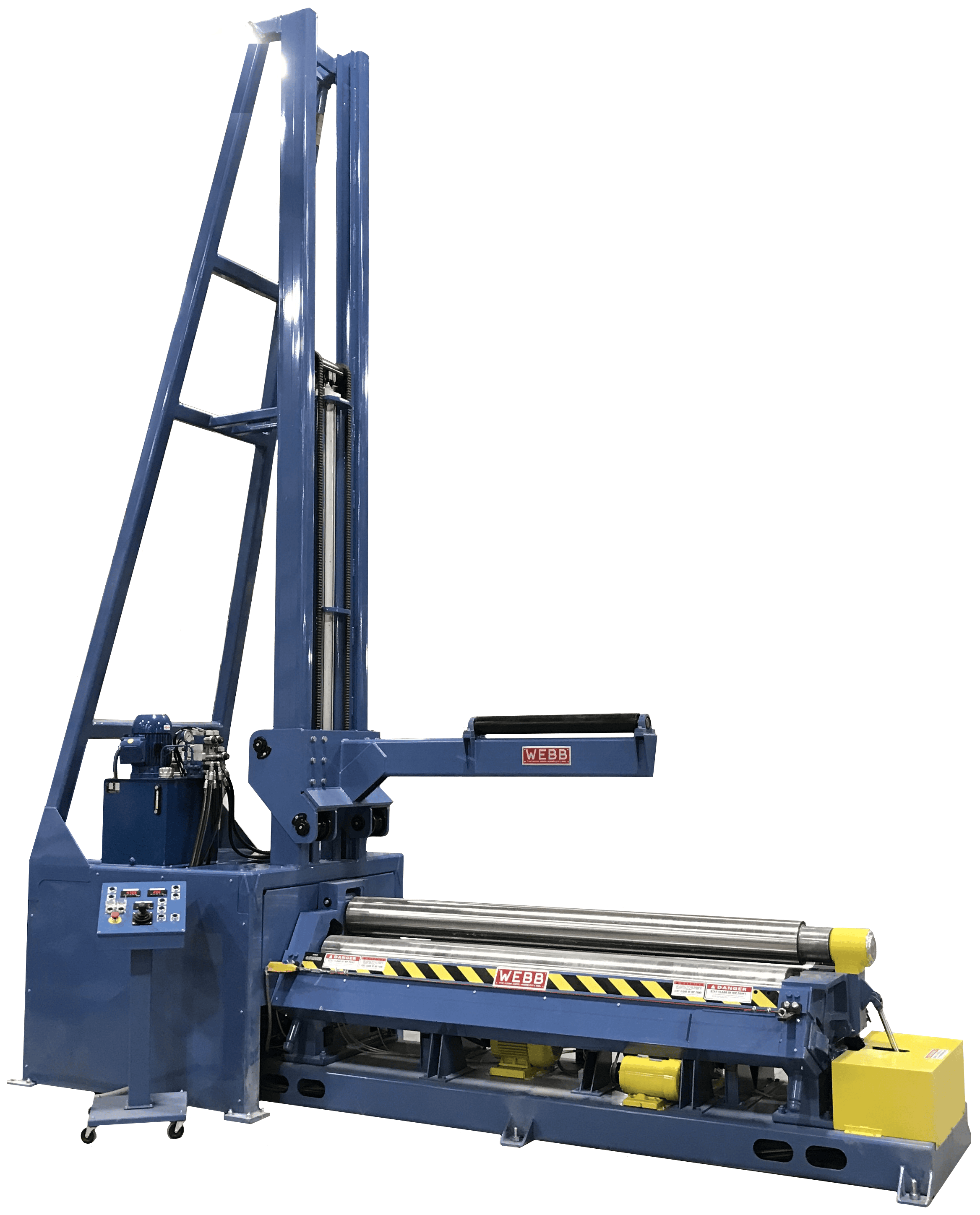

- Overhead Support
- Automated Feed Tables
- Automatic Air End Latch
- Central Lubrication System
| Model Number | Roll Diameter | Catalog # & Capacity | Catalog # & Capacity | Catalog # & Capacity |
|---|---|---|---|---|
| 800 | 8" | HR4-8008 8' x 1/4" | HR4-8010 10' x 3/16" | HR4-8012 12' x 12ga |
| 900 | 9" | HR4-9008 8' x 3/8" | HR4-9010 10' x 1/4" | HR4-9012 12' x 3/16" |
| 1000 | 10" | HR4-1008 8' x 7/16" | HR4-1010 10' x 3/8" | HR4-1012 12' x 1/4" |
| 1100 | 11" | HR4-1108 8' x 1/2" | HR4-1110 10' x 7/16" | - |
| 1200 | 12" | HR4-1208 8' x 5/8" | HR4-1210 10' x 1/2" | HR4-1212 12' x 3/8" |
| 1300 | 13" | HR4-1308 8' x 3/4" | HR4-1310 10' x 5/8" | HR4-1312 12' x 1/2" |
| 1500 | 15" | HR4-1508 8' x 7/8" | HR4-1510 10' x 3/4" | HR4-1512 12' x 5/8" |
| 1600 | 16" | HR4-1608 8' x 1" | HR4-1610 10' x 7/8: | HR4-1612 12' x 3/4" |
| 1700 | 17" | HR4-1708 8' x 1-1/8" | HR4-1710 10' x 1" | HR4-1712 12' x 7/8" |
| 1800 | 18" | HR4-1808 8' x 1-1/4" | HR4-1810 10' x 1-1/8" | HR4-1812 12' x 1" |
