R1000-20 Heavy Duty Turning Roll
Webb Model R1000-20 Portable Heavy Duty Turning Roll, AC variable speed drive w/ overload and under voltage protection. Forward-reverse-stop switch, speed dial, and rapid advance pendant controls mounted on the end of a 30’ control cable (optional 30’ extension and Forward/Reverse foot switch available).
| Total Turning Capacity(2 Idlers) in Tons | 50 |
| Turning Capacity(1 Idler) in Tons | 40 |
| Weight Capacity, Each Unit, in Tons | 20 |
| Motor Horsepower | 3 |
| Voltage | 230 or 460 3 phase |
| Speed Range, IPM | 7-58 |
| Wheel Face Width | 14” |
| Tires Per Axle | 2 |
| Maximum Working Diameter | 20’ |
| Minimum Working Diameter | 6” |
| Tire Diameter | 18” |

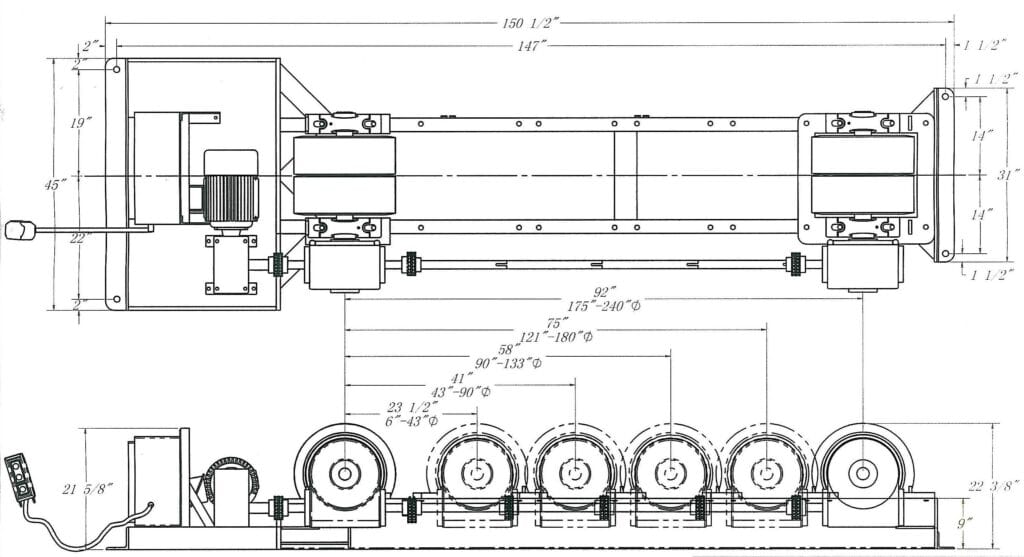

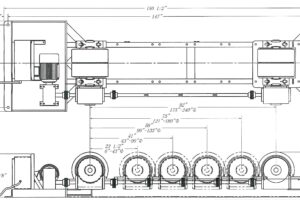

| Wheel Center Spacing | 23 ½”, 41”, 58”, 75”, 92” |
| Height to Top of Tire | 22 ½” |
| Control Cable Length Optional (30’ Extension Available) | 30’ |
| Power Unit Length | 150 ½” |
| Power Unit Width | 45” |
| Idler Unit Length | 123” |
| Idler Unit Width | 31“ |
| Power Unit Shipping Weight | 2,900lbs |
| Idler Unit Shipping Weight | 1,350bs |
| Total Shipping Weight (Approx.) | 4,250lbs |
