R1500 Heavy Duty Turning Roll Detailed Specifications
Webb Model R1500 Portable Heavy Duty Turning Roll, AC variable speed drive w/ overload and under voltage protection. Forward-reverse-stop switch, speed dial, and rapid advance pendant controls mounted on the end of a 30’ control cable (optional 30’ extension and Forward/Reverse foot switch available).
| Total Turning Capacity(2 Idlers) in Tons | 75 |
| Turning Capacity(1 Idler) in Tons | 60 |
| Weight Capacity, Each Unit, in Tons | 30 |
| Motor Horsepower | 5 |
| Voltage | 230 or 460 3 phase |
| Speed Range, IPM | 7-58 |
| Wheel Face Width | 21” |
| Tires Per Axle | 3 |
| Maximum Working Diameter | 15’ |
| Minimum Working Diameter | 6” |
| Tire Diameter | 18” |
| Wheel Center Spacing | 23 ½”, 41”, 58”, 75” |
| Height to Top of Tire | 22 ½” |
| Control Cable Length Optional (30’ Extension Available) | 30’ |

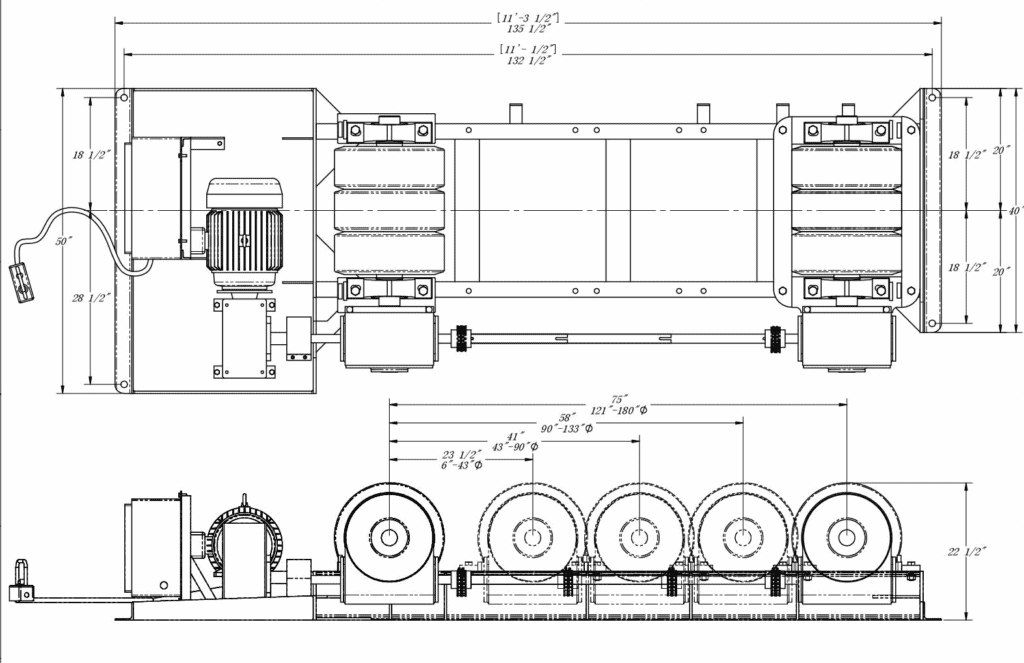

| Power Unit Length | 135 ½” |
| Power Unit Width | 50” |

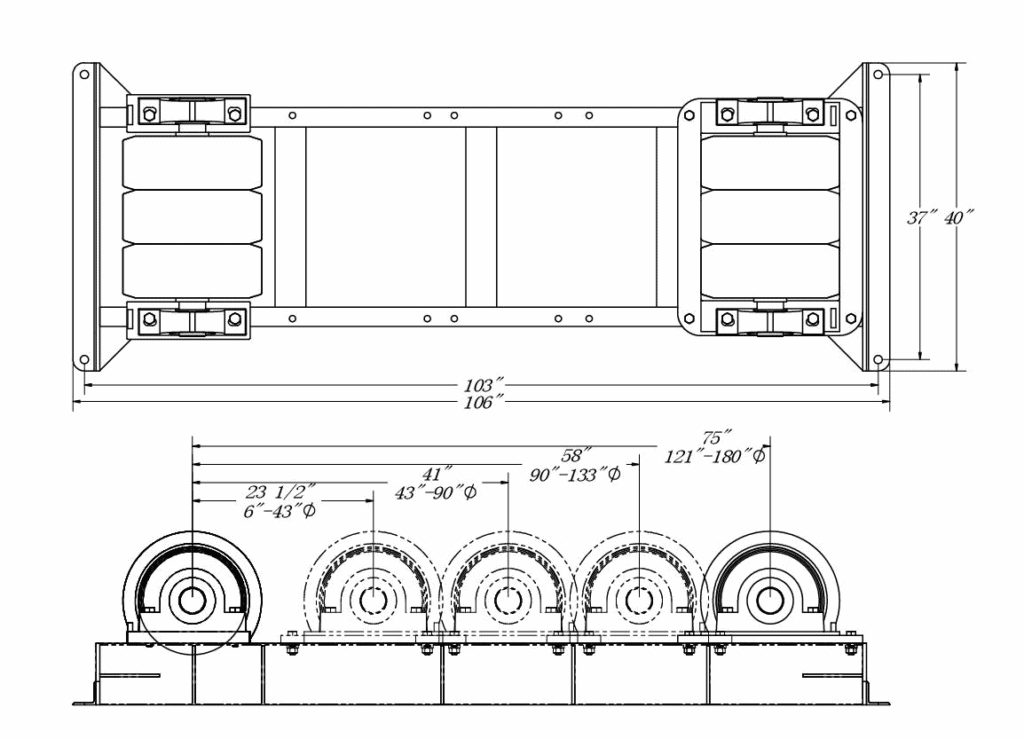

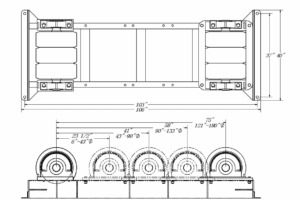

| Idler Unit Length | 106” |
| Idler Unit Width | 40“ |
| Power Unit Shipping Weight | 3,400lbs |
| Idler Unit Shipping Weight | 1,650bs |
| Total Shipping Weight (Approx.) | 5,050lbs |
