R500 Heavy Duty Turning Roll Detailed Specifications
Webb Model R500 Portable Heavy Duty Turning Roll, AC variable speed drive w/ overload and under voltage protection. Forward-reverse-stop switch, speed dial, and rapid advance pendant controls mounted on the end of a 30’ control cable (optional 30’ extension and Forward/Reverse foot switch available).
| Total Turning Capacity(2 Idlers) in Tons | 25 |
| Turning Capacity(1 Idler) in Tons | 20 |
| Weight Capacity, Each Unit, in Tons | 10 |
| Motor Horsepower | 2 |
| Voltage | 230 or 460 3 phase |
| Speed Range, IPM | 7-58 |
| Wheel Face Width | 7” |
| Tires Per Axle | 1 |
| Maximum Working Diameter | 15’ |
| Minimum Working Diameter | 6” |
| Tire Diameter | 18” |

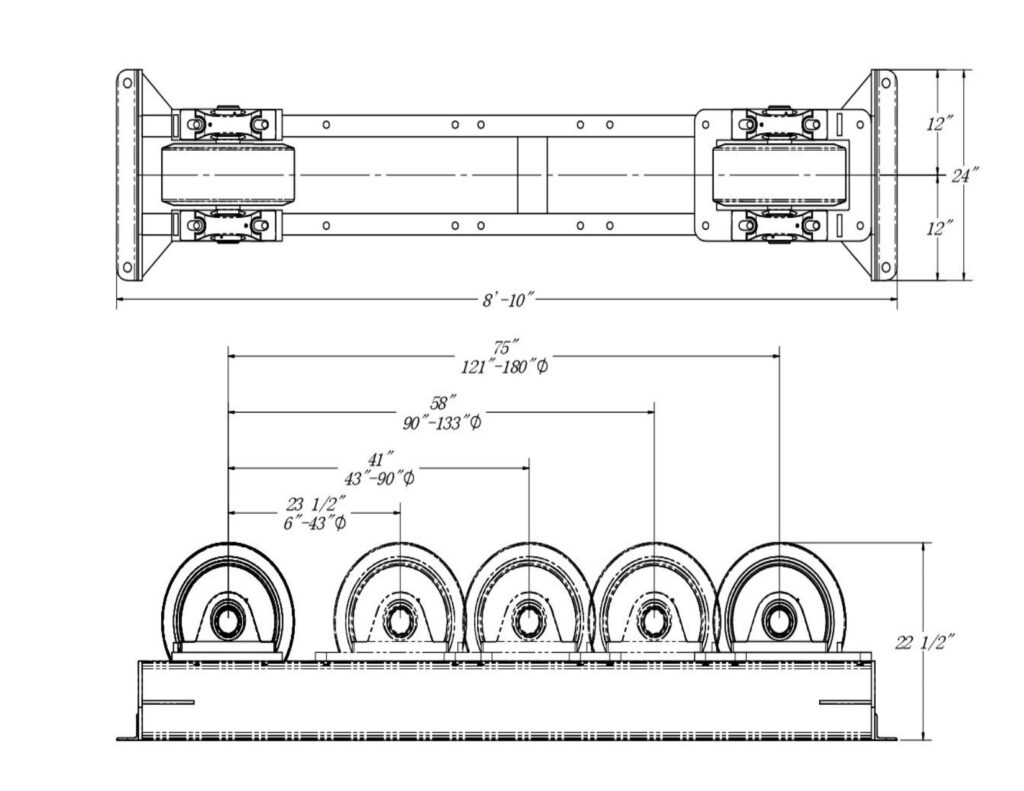

| Wheel Center Spacing | 23 ½”, 41”, 58”, 75” |
| Height to Top of Tire | 22 ½” |
| Control Cable Length Optional (30’ Extension Available) | 30’ |
| Power Unit Length | 133 ½” |
| Power Unit Width | 33” |
| Idler Unit Length | 106” |
| Idler Unit Width | 24“ |
| Power Unit Shipping Weight | 2,200lbs |
| Idler Unit Shipping Weight | 850bs |
| Total Shipping Weight (Approx.) | 3,050lbs |
